SW900 LCD Display Control Panel 24V 36V 48V 52V 60V 72V E Bike Electric Bicycle Screen 5 Pin
£26.99

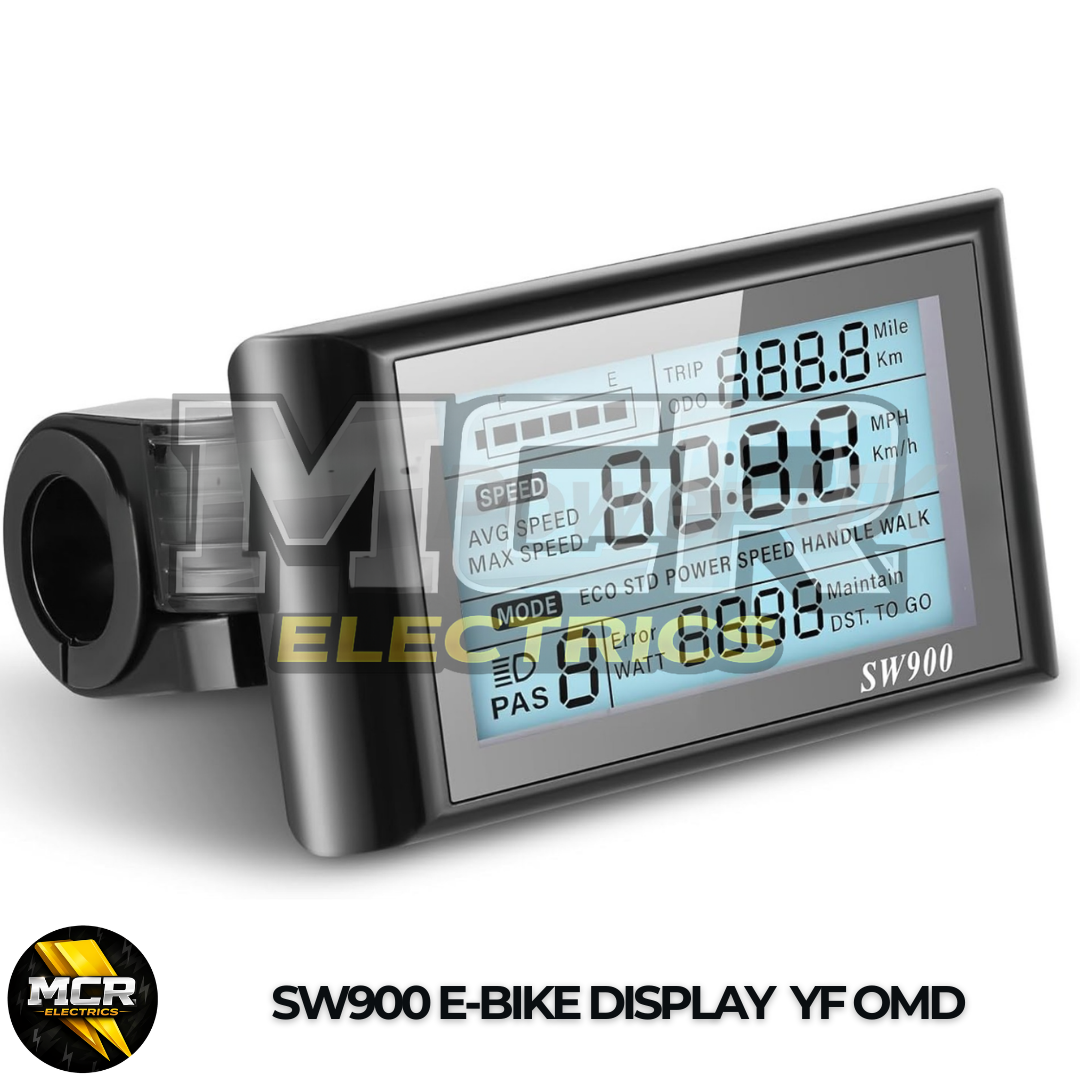

🖥️ SW900 E-Bike LCD Display | Universal 24V–72V | MCR Electric
The SW900 is the standard display supplied with our 2000W hub motor kits — reliable, simple to set up and compatible with most high-power controllers using the YF protocol.
📦 What’s Included
🔧 1 × SW900 Display
🔩 Rubber handlebar adaptors + fixing bolts
⚡ Key Features
📊 Displays speed, trip time & ride data
🌙 Backlit screen – clear at night
🔋 Auto-detect voltage (24V–72V)
🧠 Works with many controller types
🔗 YF protocol compatible (not KT protocol)
🛠️ Easy configuration via P-settings
🔧 Compatibility
✔ Works with most sine-wave controllers
✔ Default display for our 2000W kits
❌ Not compatible with KT protocol controllers
Unsure? Send us a photo of your controller plug and we’ll confirm before purchase.
⚙️ Main Settings (Quick Guide)
| Setting | Function |
|---|---|
| P01 | Screen brightness |
| P02 | MPH / KMH |
| P03 | Battery voltage |
| P04 | Auto sleep timer |
| P05 | PAS levels |
| P06 | Wheel size (important for speed accuracy) |
| P08 | Speed limiter |
| P09 | Throttle start mode (safety delay) |
| P10 | Drive mode (PAS / Throttle / Both) |
| P14 | Current limit (do not change unless needed) |
🎥 Many tutorials available online showing full setup.
⚠️ Common Error Codes
| Code | Meaning |
|---|---|
| 6 | Low battery voltage |
| 7 | Motor fault |
| 8 | Throttle fault |
| 9 | Controller fault |
| 10/11 | Communication error |
| 12 | BMS communication issue |
| 13 | Headlight issue |
🚚 Shipping
🚚 Same-day dispatch on all orders placed before the daily cut-off — fast UK delivery
