⚡ E-BMX 1000W Rear Wheel Conversion Kit – 48V • 110mm BMX Dropout

SW900 Colour Display • 30A Sine Wave Controller • Plug & Play Waterproof Wiring

💳 Pay with Klarna (Pay in 3, subject to approval) • PayPal Accepted • All Major Debit & Credit Cards Accepted

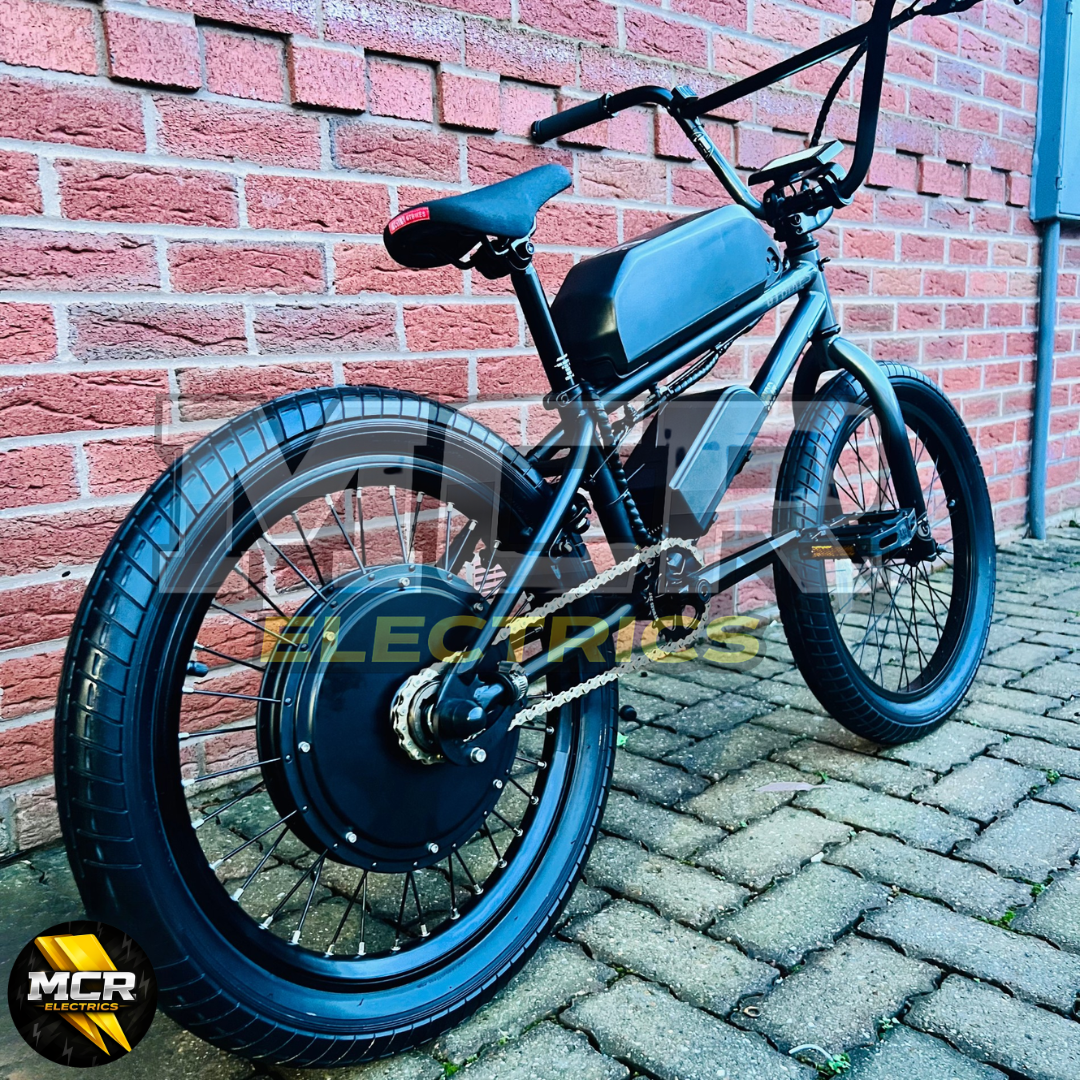

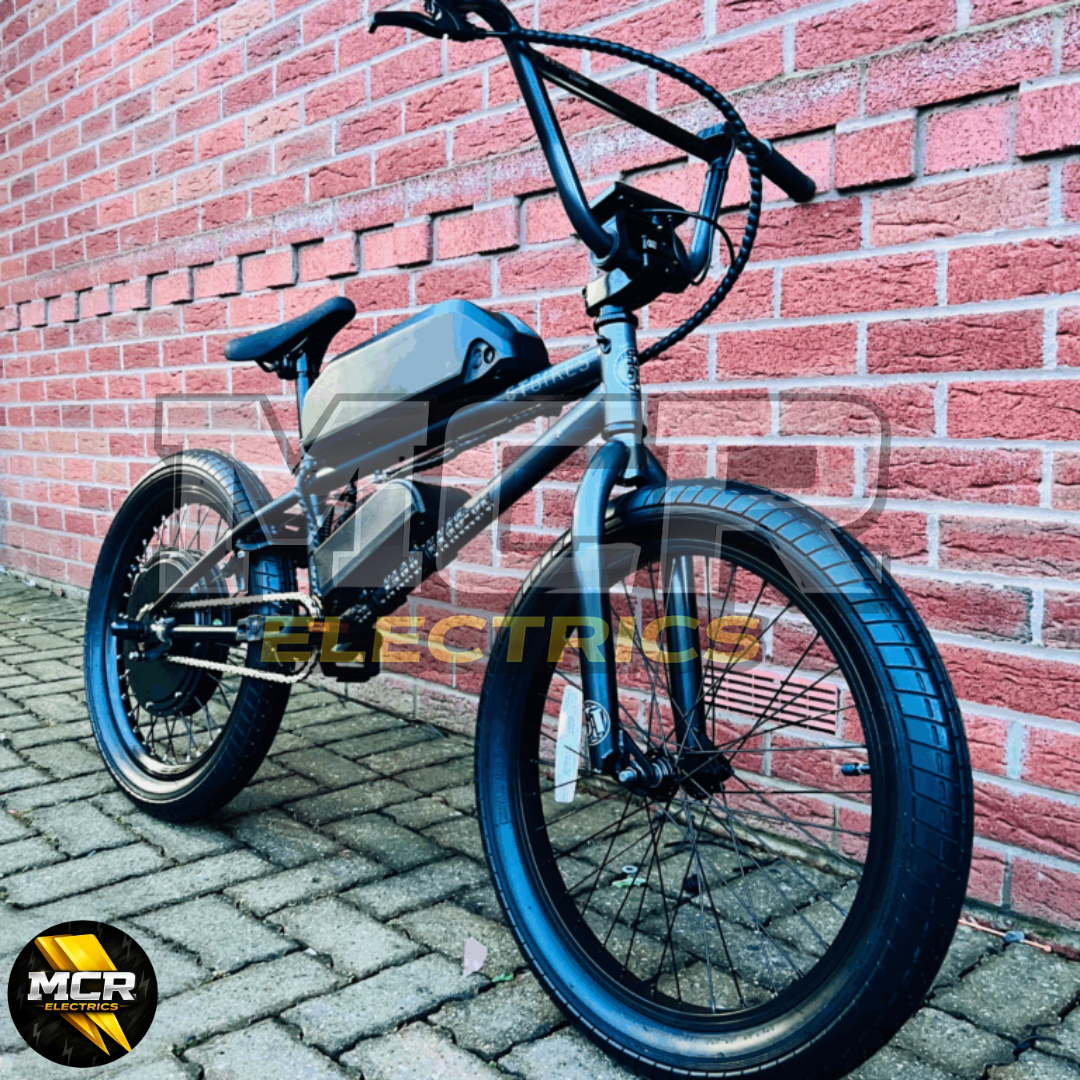

Convert your BMX into a powerful electric bike with the MCR Electric E-BMX 1000W Rear Wheel Conversion Kit. Designed specifically for 110mm rear dropout BMX frames, this custom-built kit delivers strong performance while maintaining a clean, professional installation.

Featuring a 1000W brushless rear hub motor, 30A sine wave controller, SW900 full-colour display, and premium waterproof wiring throughout, this kit has been engineered for riders who want reliability, performance and easy installation.

Full-power mode is intended for off-road or private land use only.

⚡ Kit Features

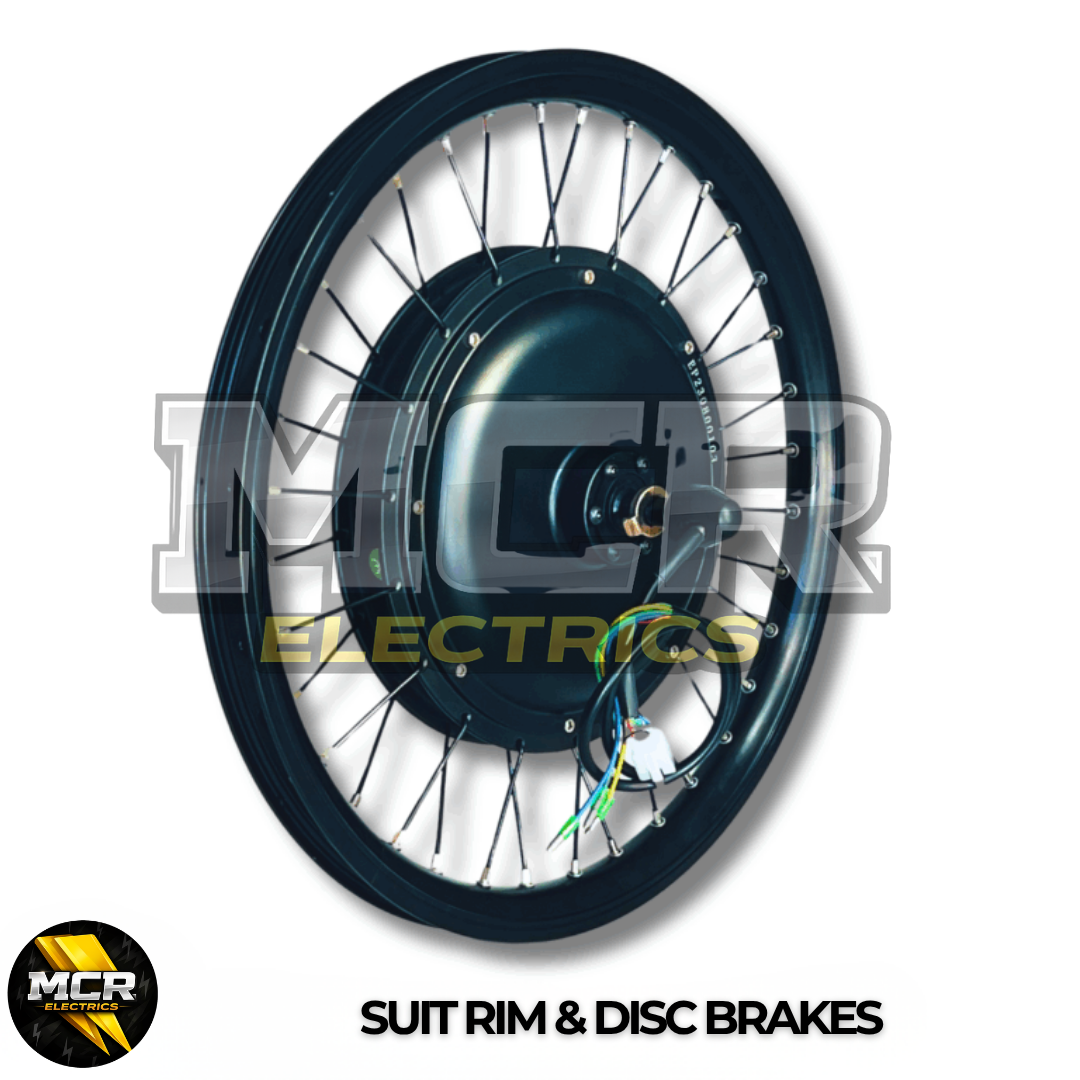

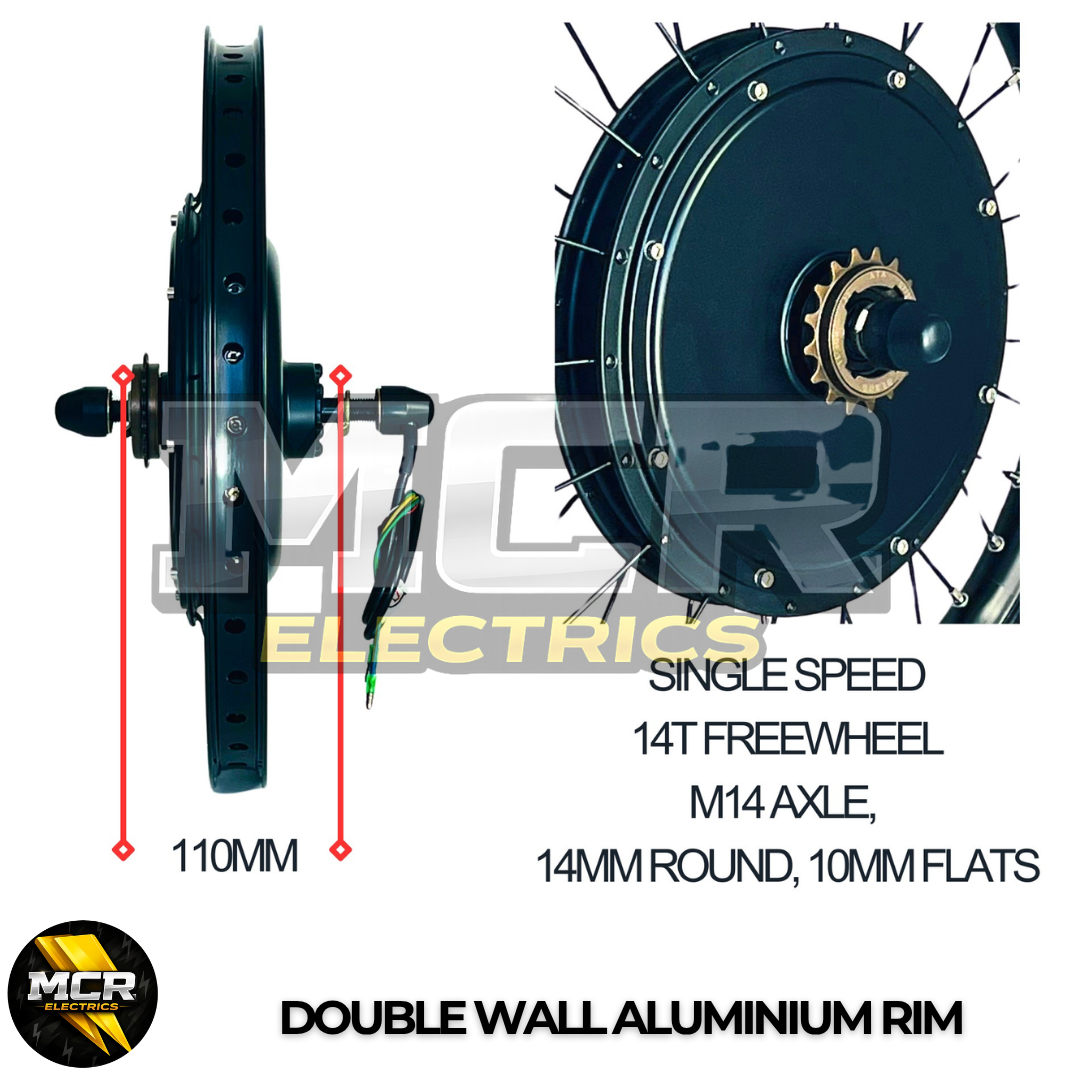

• ✔️ Custom 1000W Brushless Rear Hub Motor

• ✔️ Designed specifically for 110mm BMX rear dropouts

• ✔️ 48V System

• ✔️ 20" Double-Wall Black Aluminium Rim

• ✔️ Rim Brake Compatible

• ✔️ Heavy-Duty 12G Black Stainless Steel Spokes

• ✔️ 16T Single-Speed Freewheel

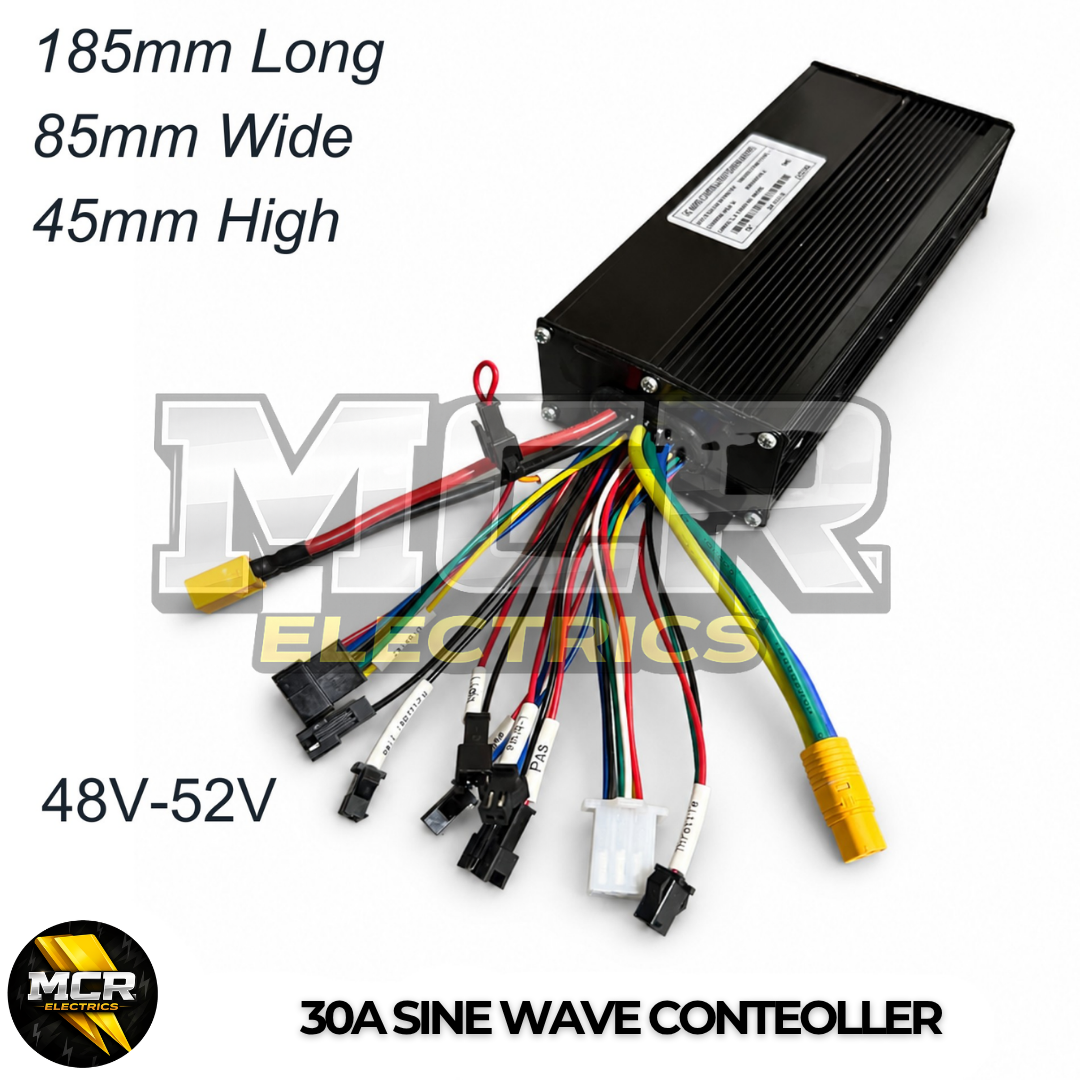

• ✔️ 30A Compact Sine Wave Controller

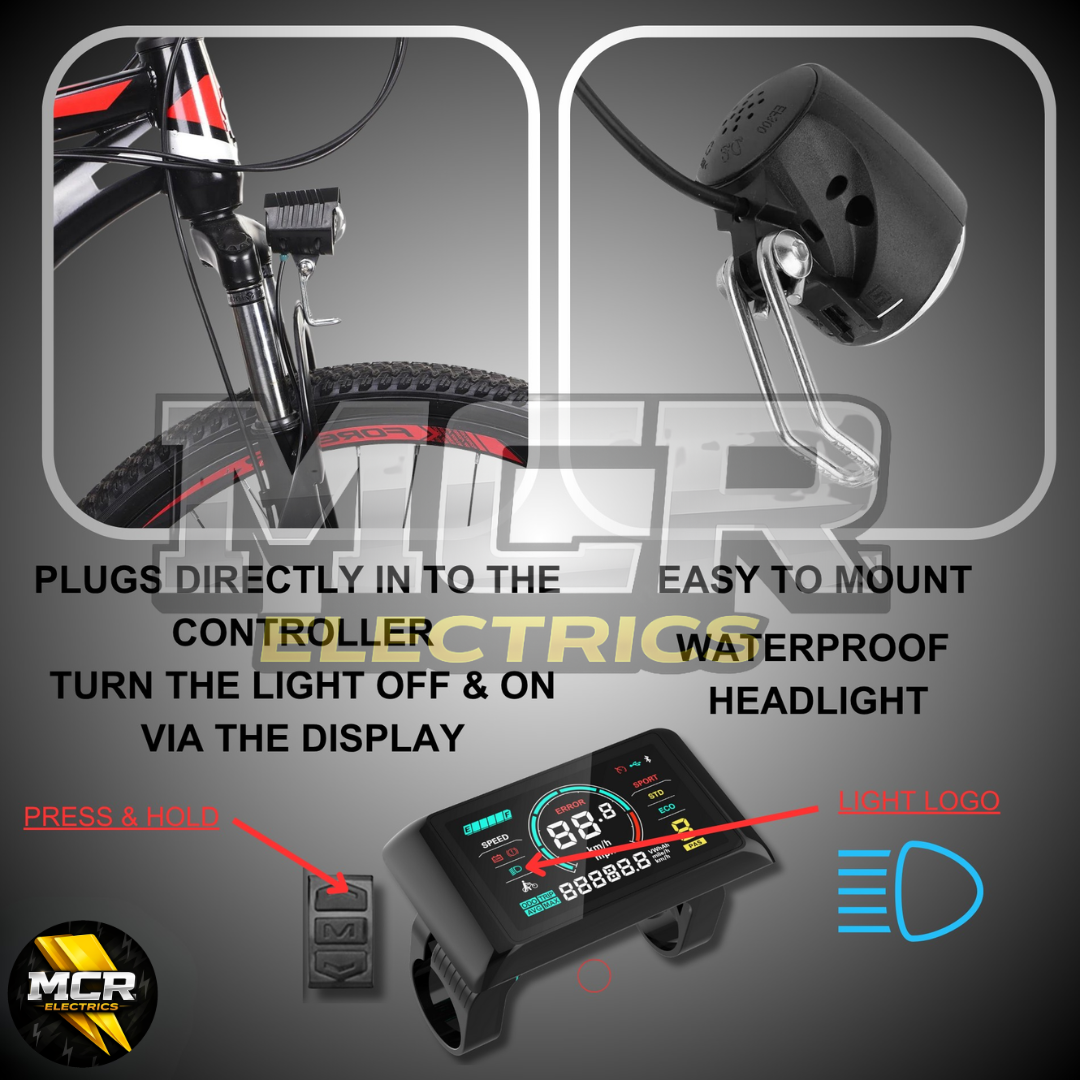

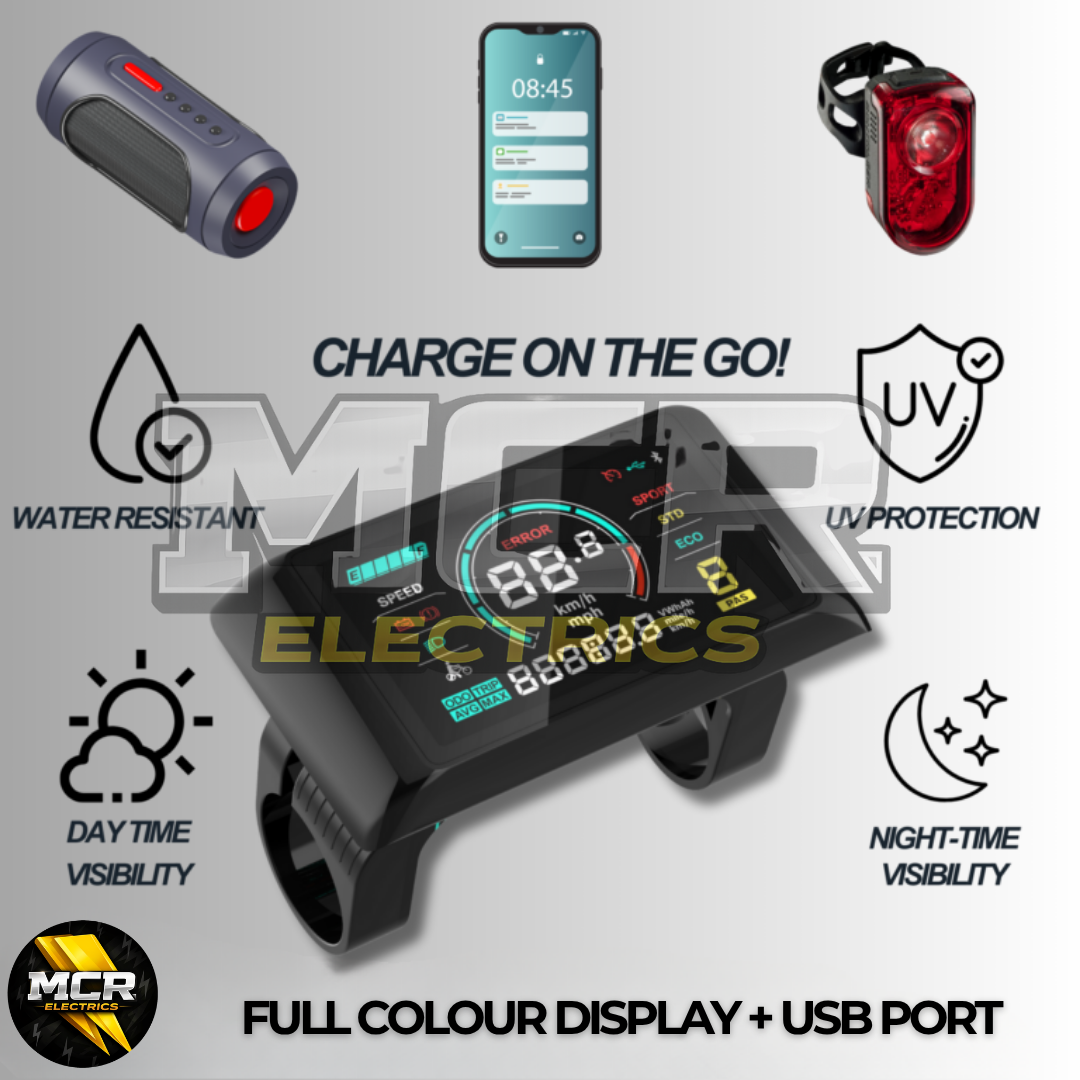

• ✔️ SW900 Full Colour LCD Display

• ✔️ Thumb Throttle

• ✔️ Brake Levers with Motor Cut-Off

• ✔️ DL12 Pedal Assist Sensor (PAS)

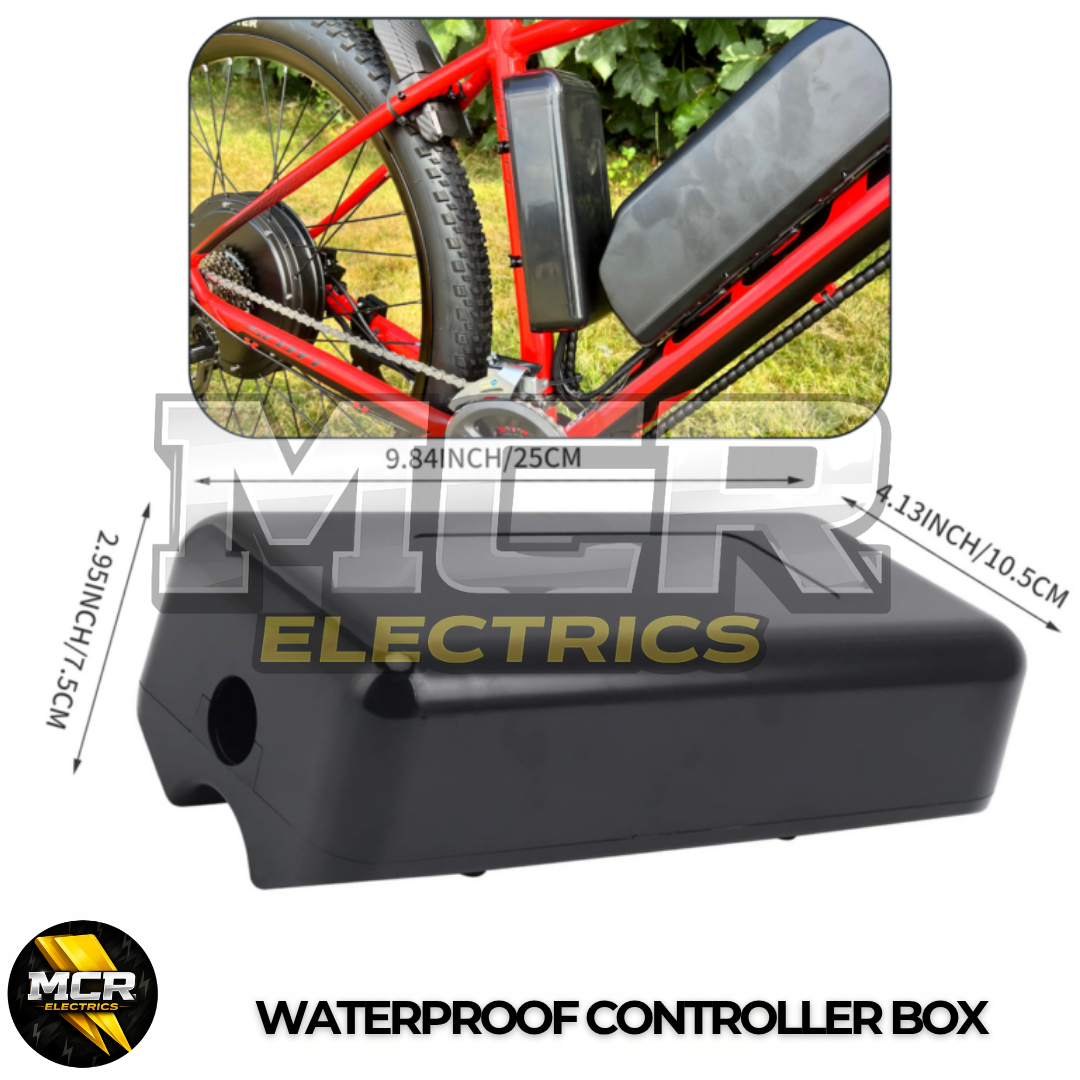

• ✔️ Waterproof Controller Box

• ✔️ 2 × Custom Stainless Steel Torque Arms

• ✔️ Waterproof Plug-and-Play Wiring

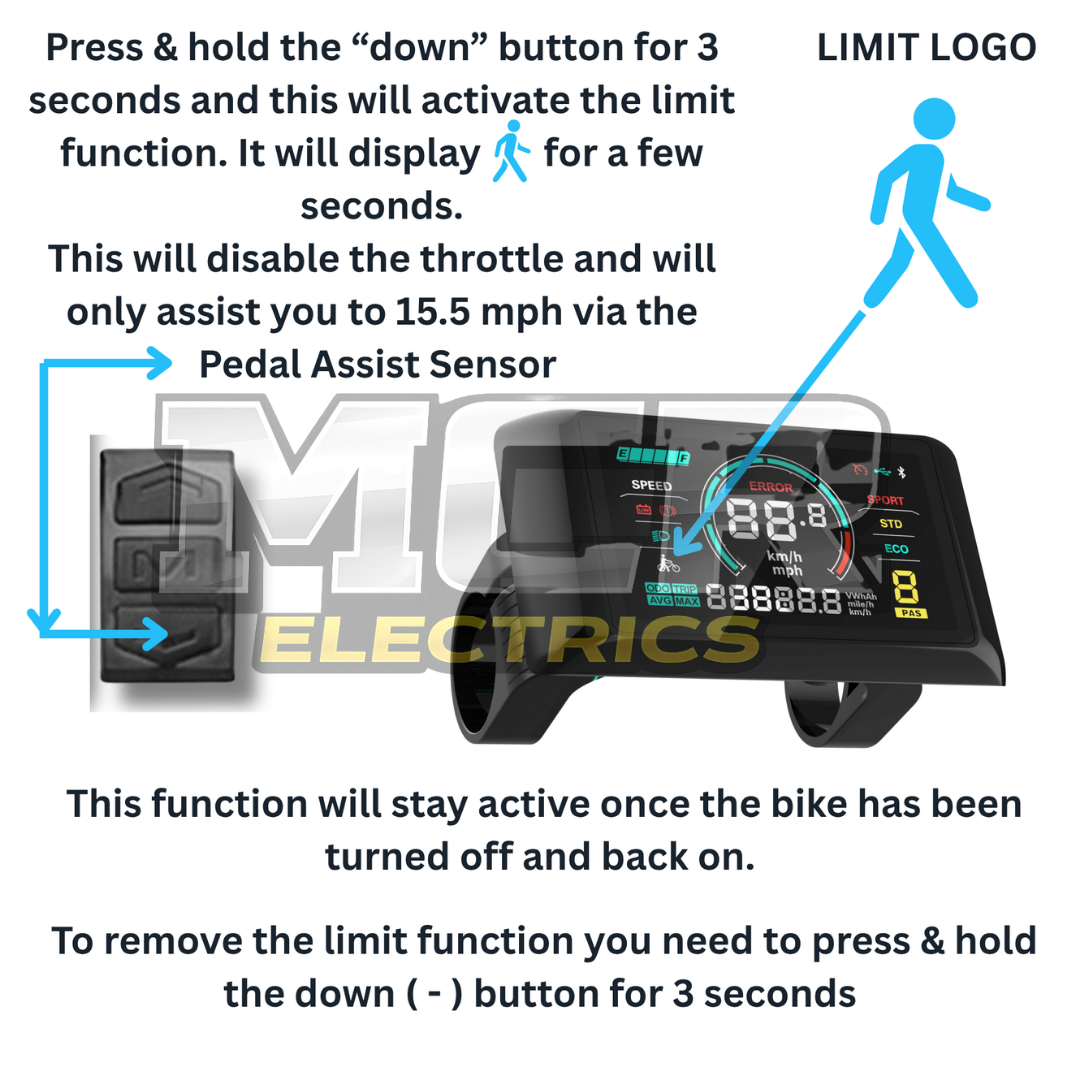

⚖️ Selectable 250W Street Mode

The SW900 display includes a built-in Street Mode to assist with compliant riding where applicable.

To activate:

• Hold the Minus (-) button for approximately 3 seconds.

When enabled:

• ✔️ Pedal assistance is limited to 15.5mph (25km/h)

• ✔️ Throttle is disabled and functions as walk assist only

• ✔️ Setting remains saved after the bike is switched off

Hold the Minus (-) button again to return to full-power mode.

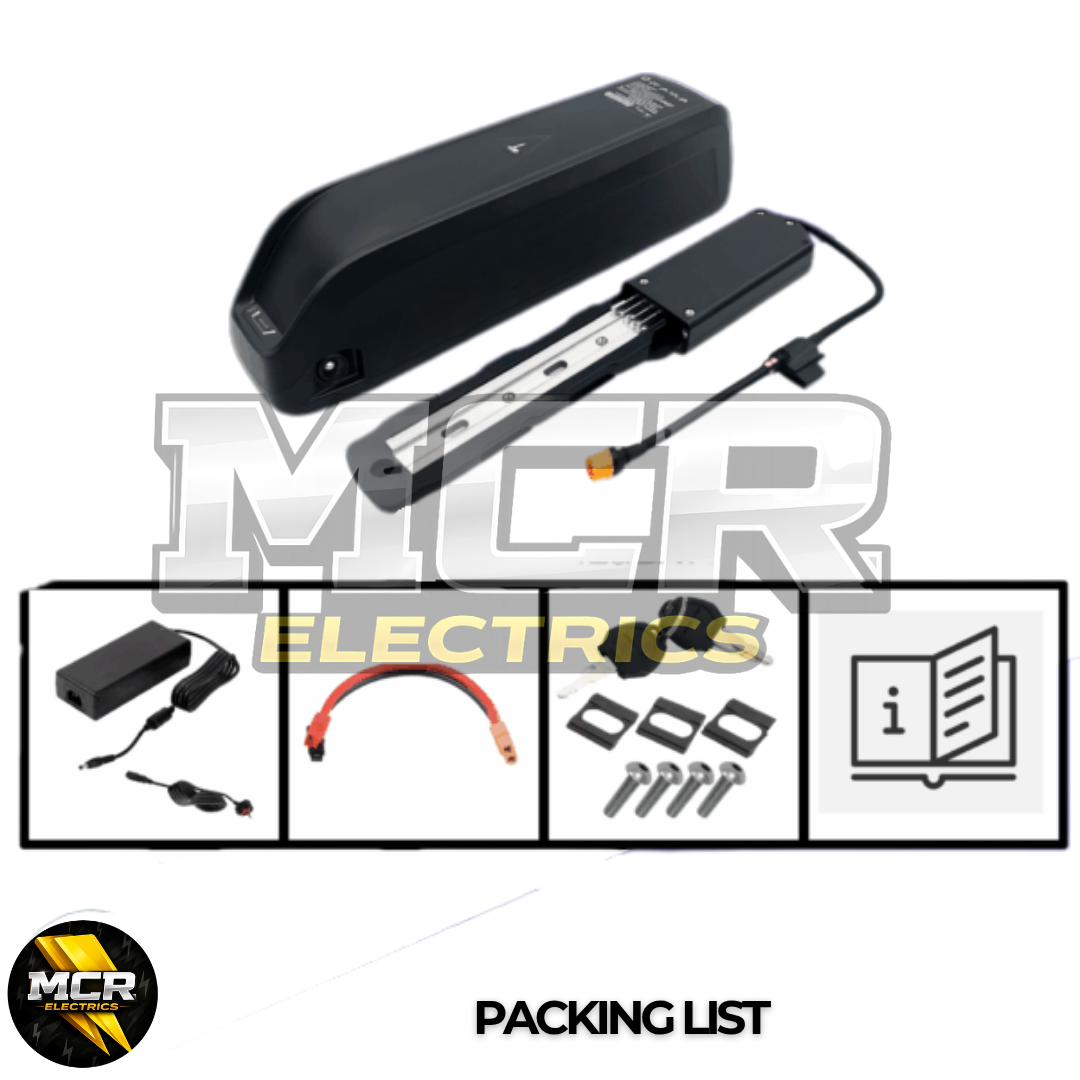

🔋 Optional Battery

Complete your build with our optional:

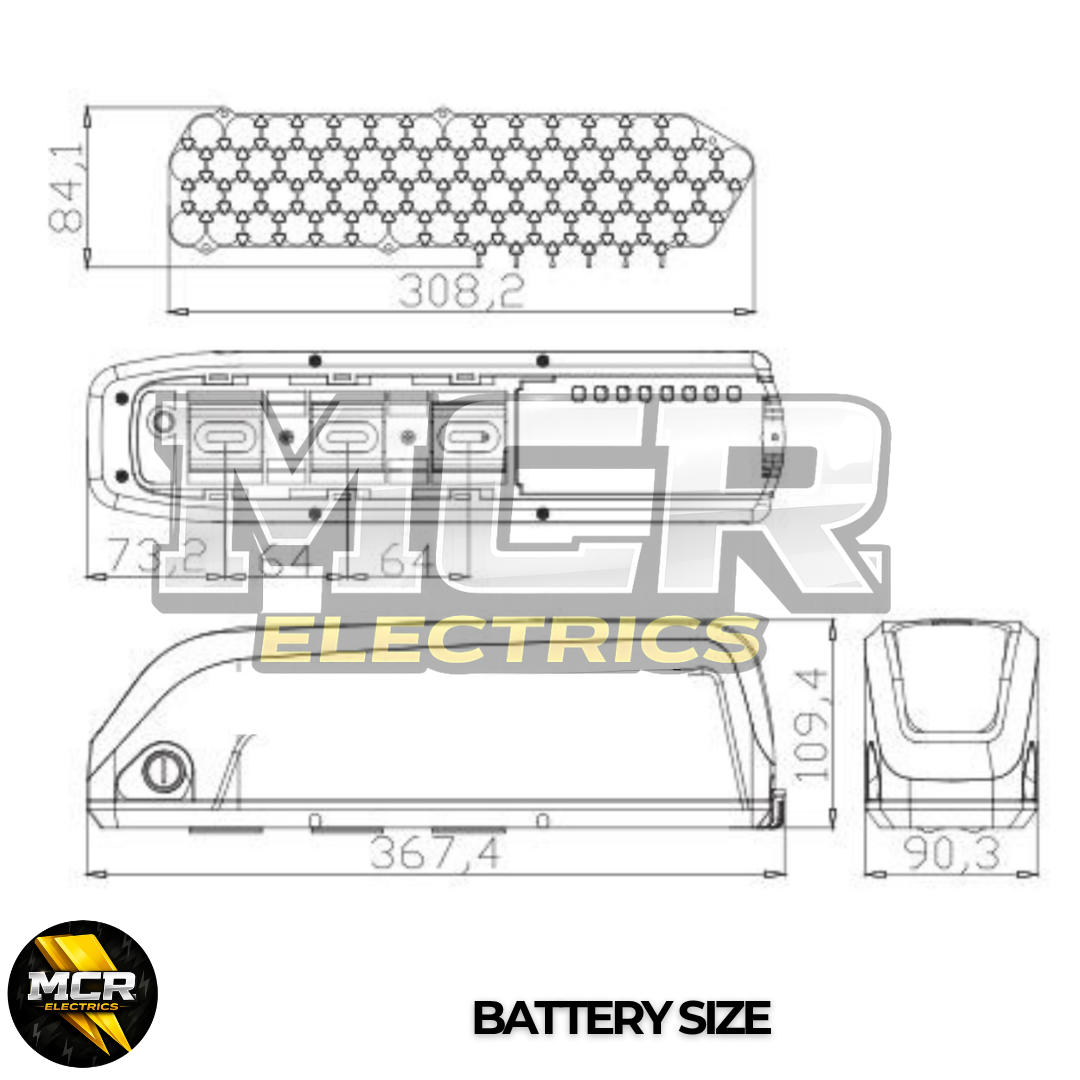

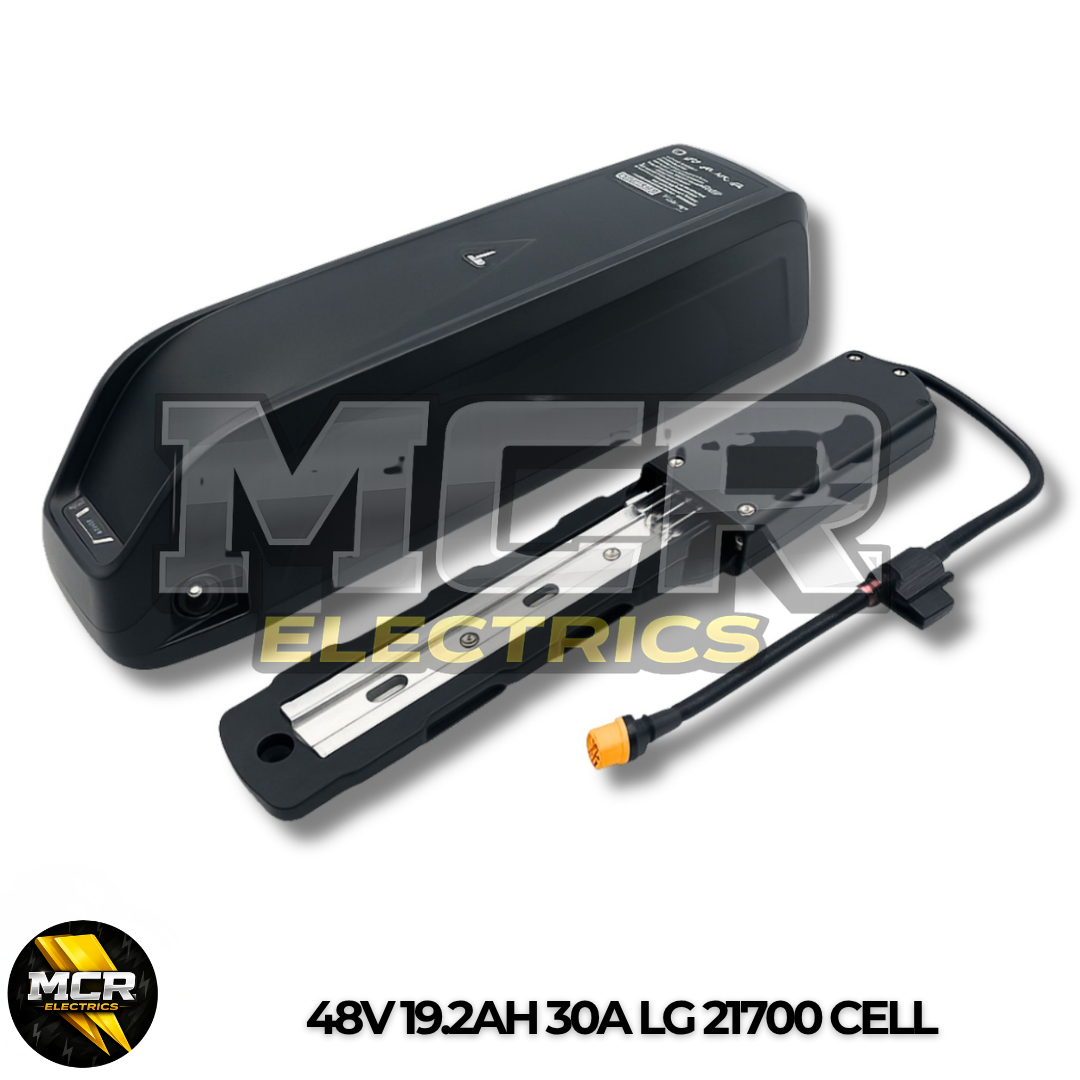

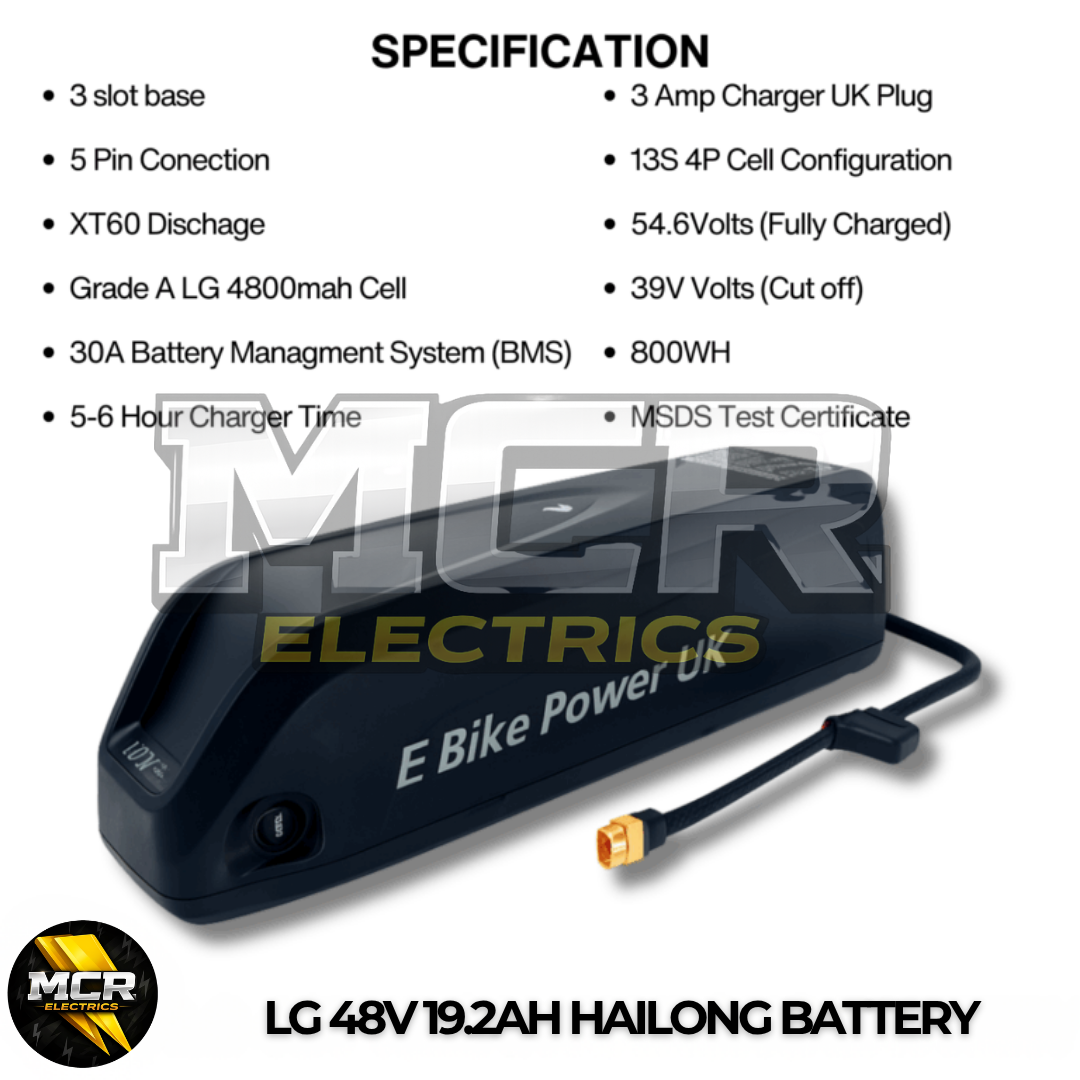

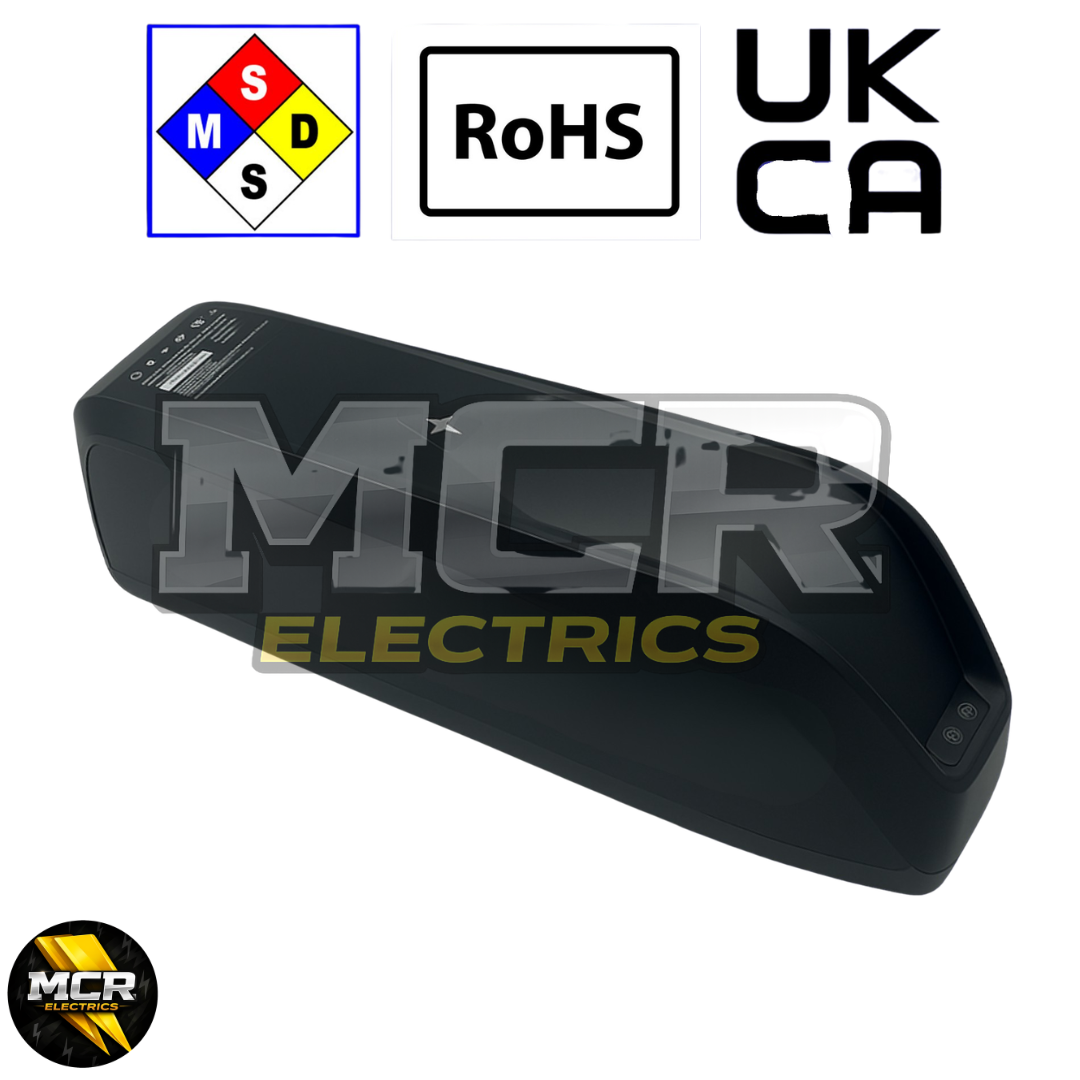

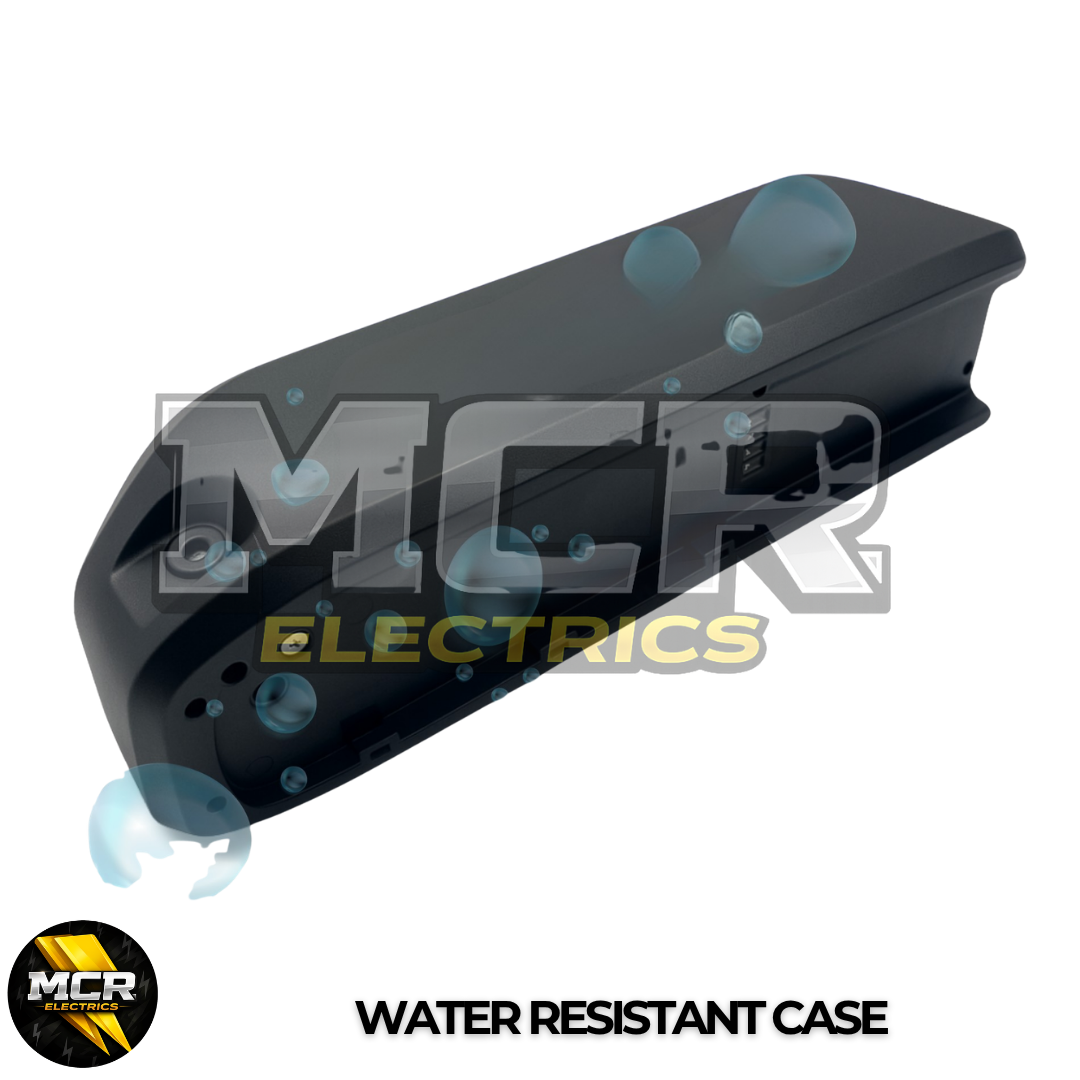

48V 19.2Ah Premium Battery

• ✔️ Grade A OEM LG 21700 Cells

• ✔️ 4800mAh Cell Technology

• ✔️ 30A Smart BMS

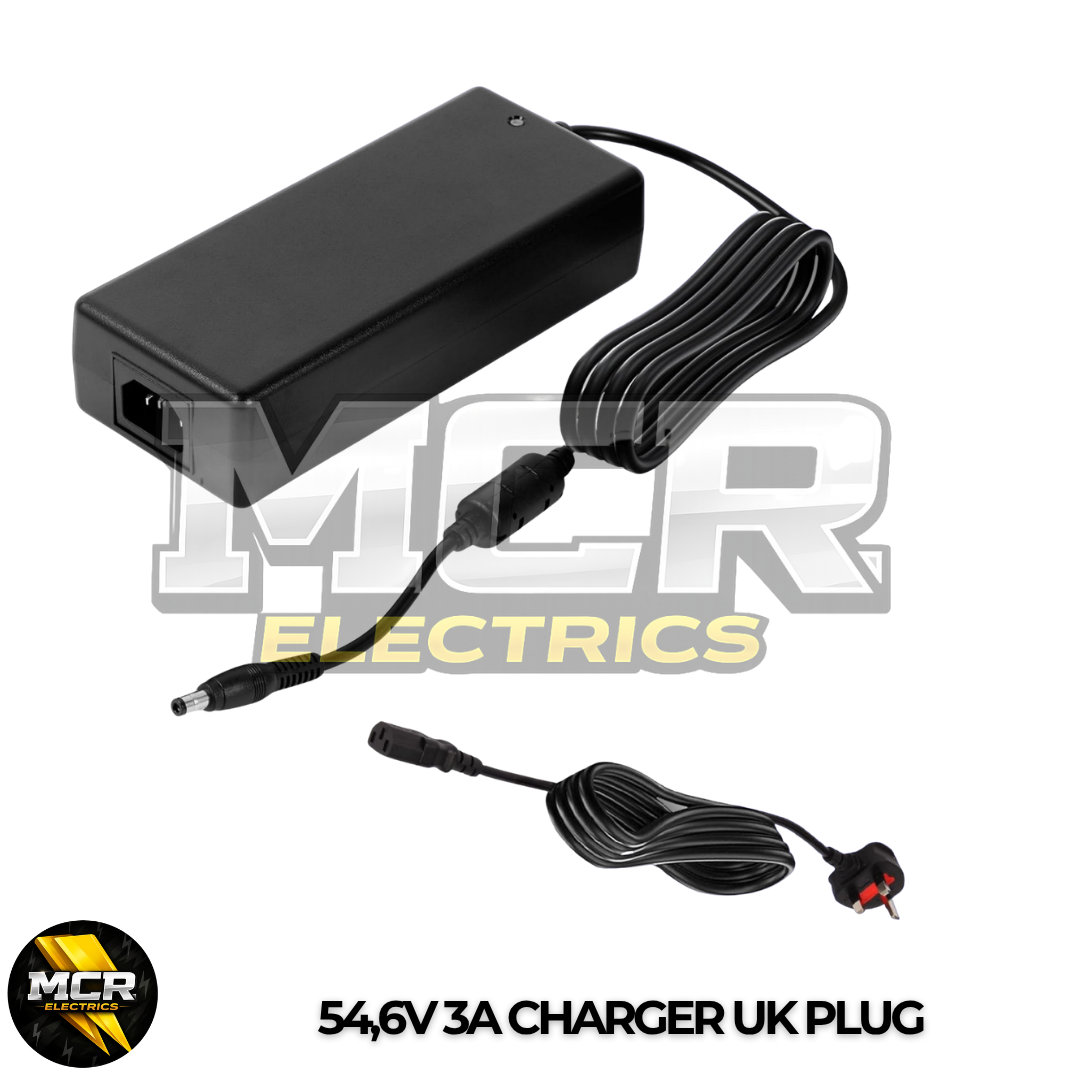

• ✔️ 54.6V 3A UK Charger Included

• ✔️ 4-Slot Mounting Base

• ✔️ XT60 Plug-and-Play Connection

Compatible with all MCR Electric conversion kits.

🔌 Battery Compatibility

The controller uses an XT60 battery connector.

If purchasing the kit only, you'll need a compatible XT60 battery or suitable adaptor.

All compatible MCR Electric batteries are available separately, and XT90 to XT60 adaptors are supplied where required.

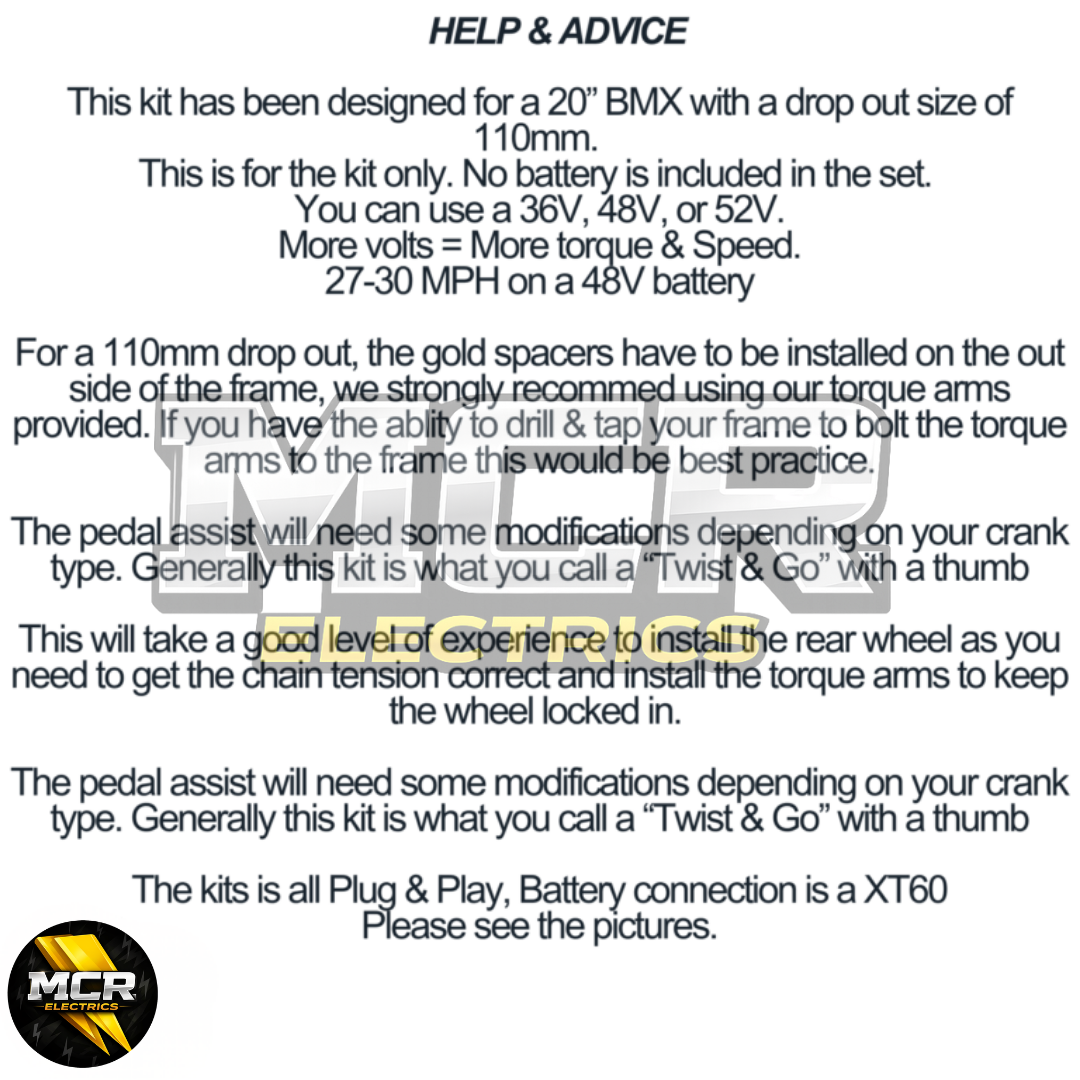

🛠️ Installation Information

This kit is designed for customers with a reasonable level of DIY experience.

Important Installation Notes

• ✔️ Trial-fit the axle, spacers, torque arms and axle nuts before connecting the motor wiring.

• ✔️ Match the motor wire colours exactly:

  • Red → Red

  • Black → Black

  • Green → Green

  • Blue → Blue

  • Yellow → Yellow

• ✔️ Three thick wires are the motor phase wires.

• ✔️ Five thin wires are the Hall sensor wires.

• ✔️ This BMX kit uses bullet connectors with silicone sleeves to maximise axle clearance.

• ✔️ Gold locating spacers may be fitted inside or outside the dropouts depending on your frame.

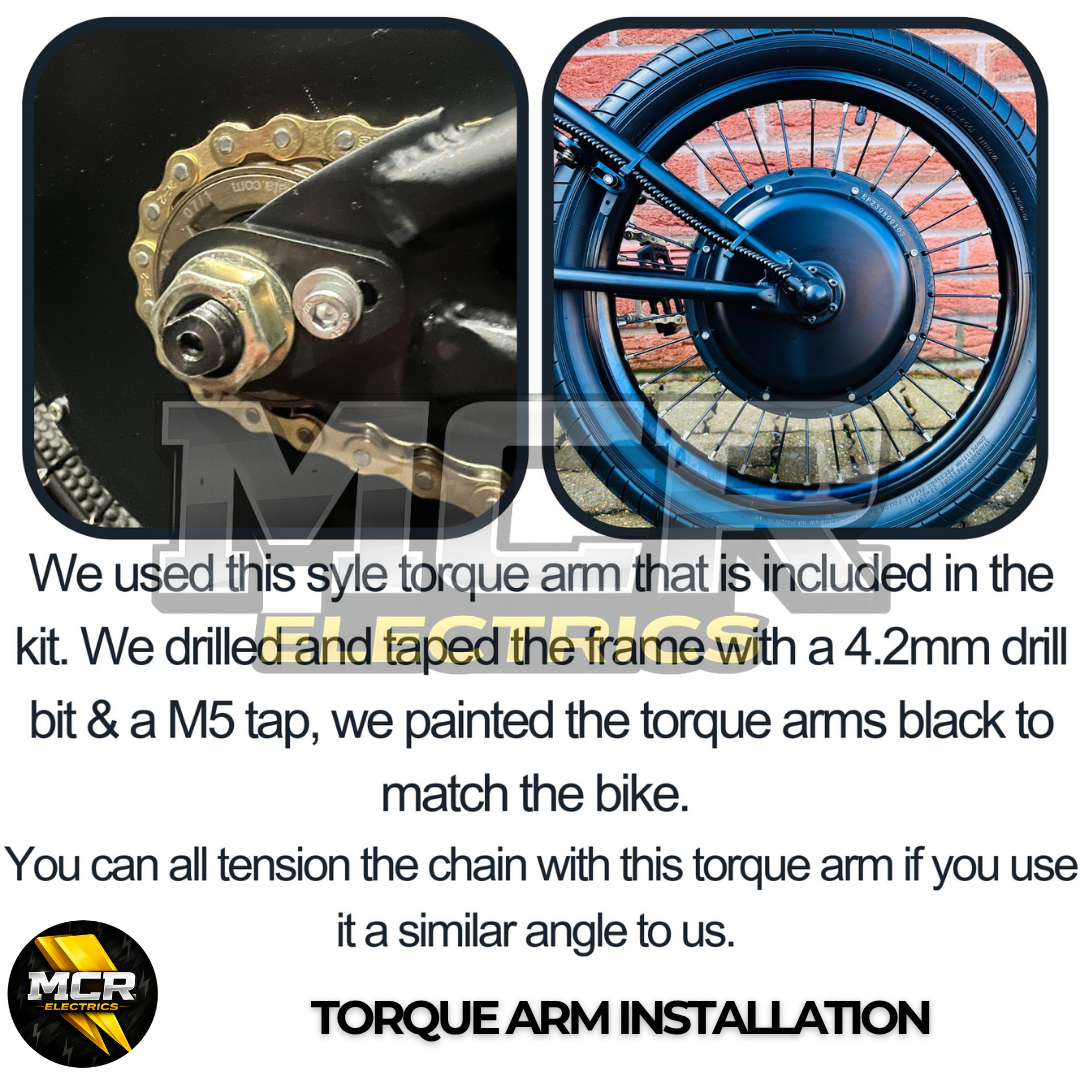

• ✔️ Always fit both supplied torque arms for maximum safety.

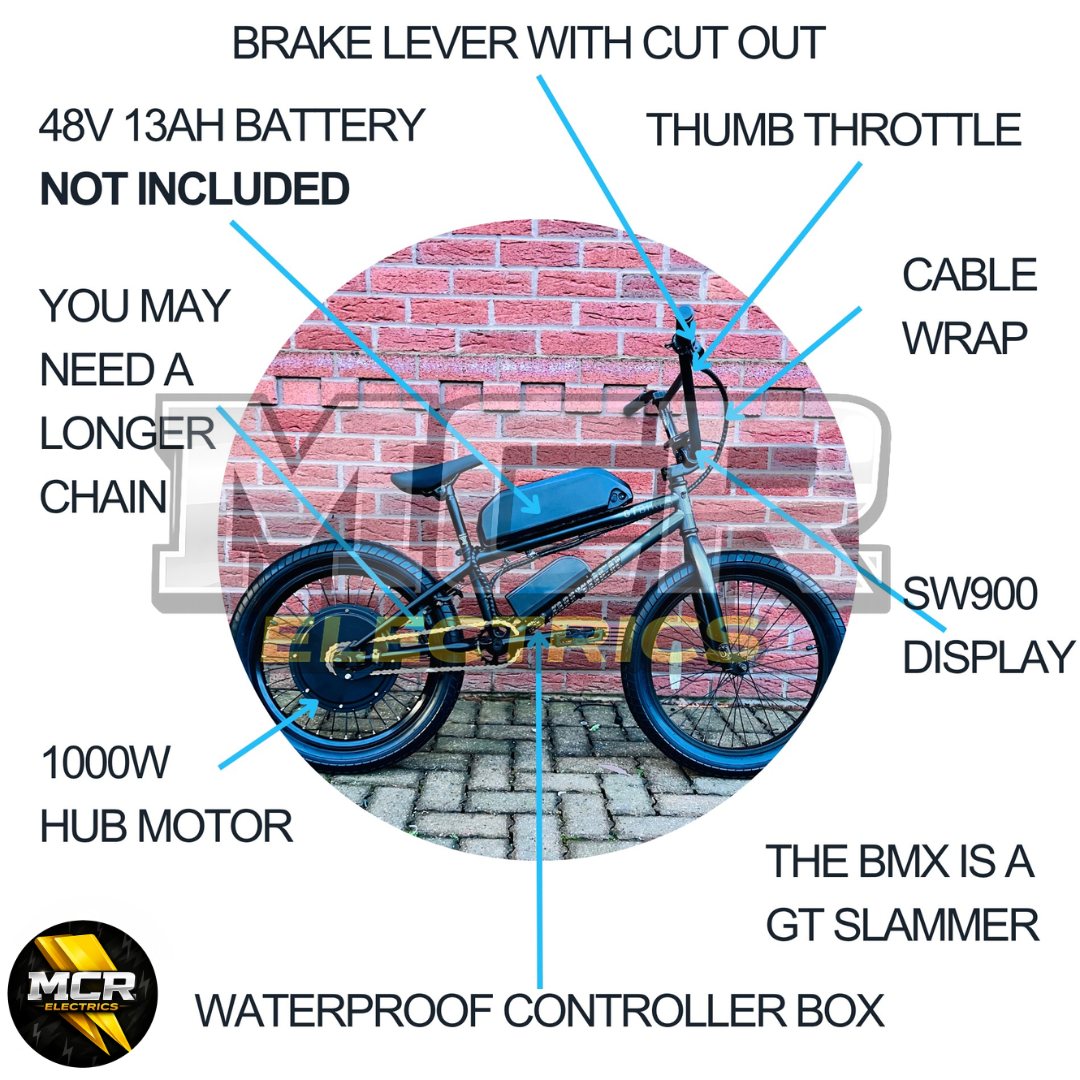

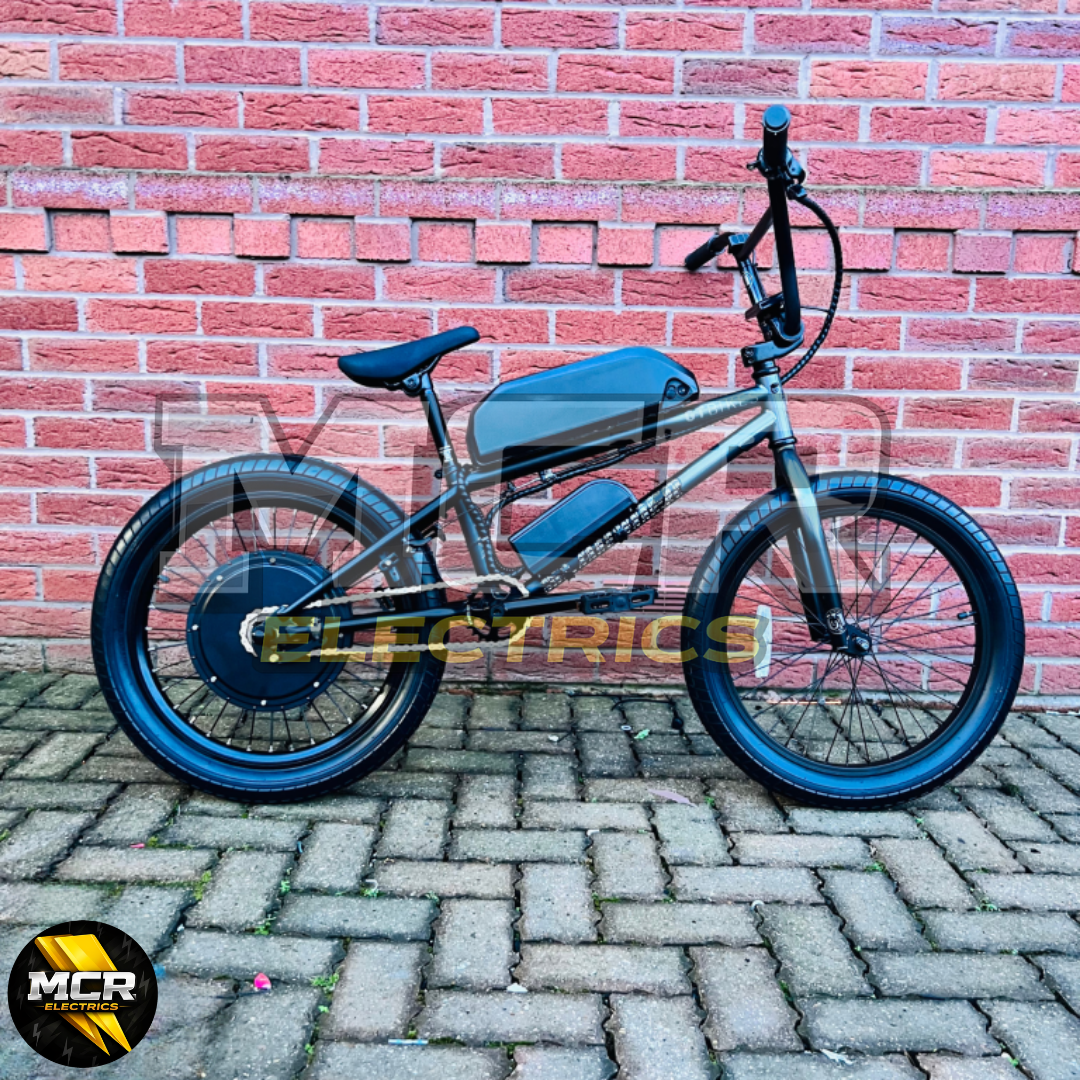

🚲 BMX Battery Mounting

Most BMX frames have very limited frame space and no bottle cage mounts.

For the most secure installation, we recommend:

• ✔️ Installing threaded rivnuts into the top tube

• ✔️ Using a rivnut tool to securely mount the battery base

Alternative battery mounting methods may also be used depending on your frame and battery choice.

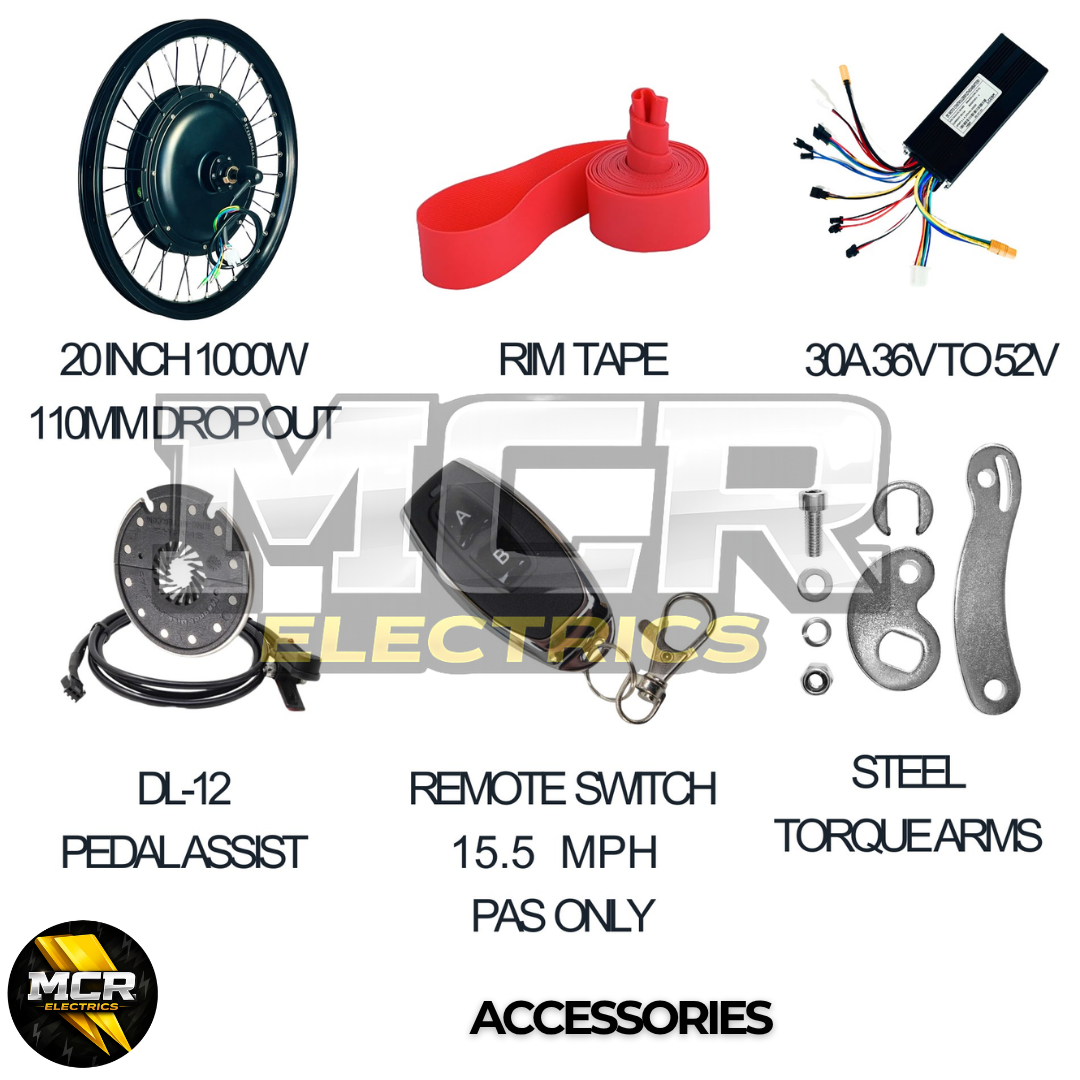

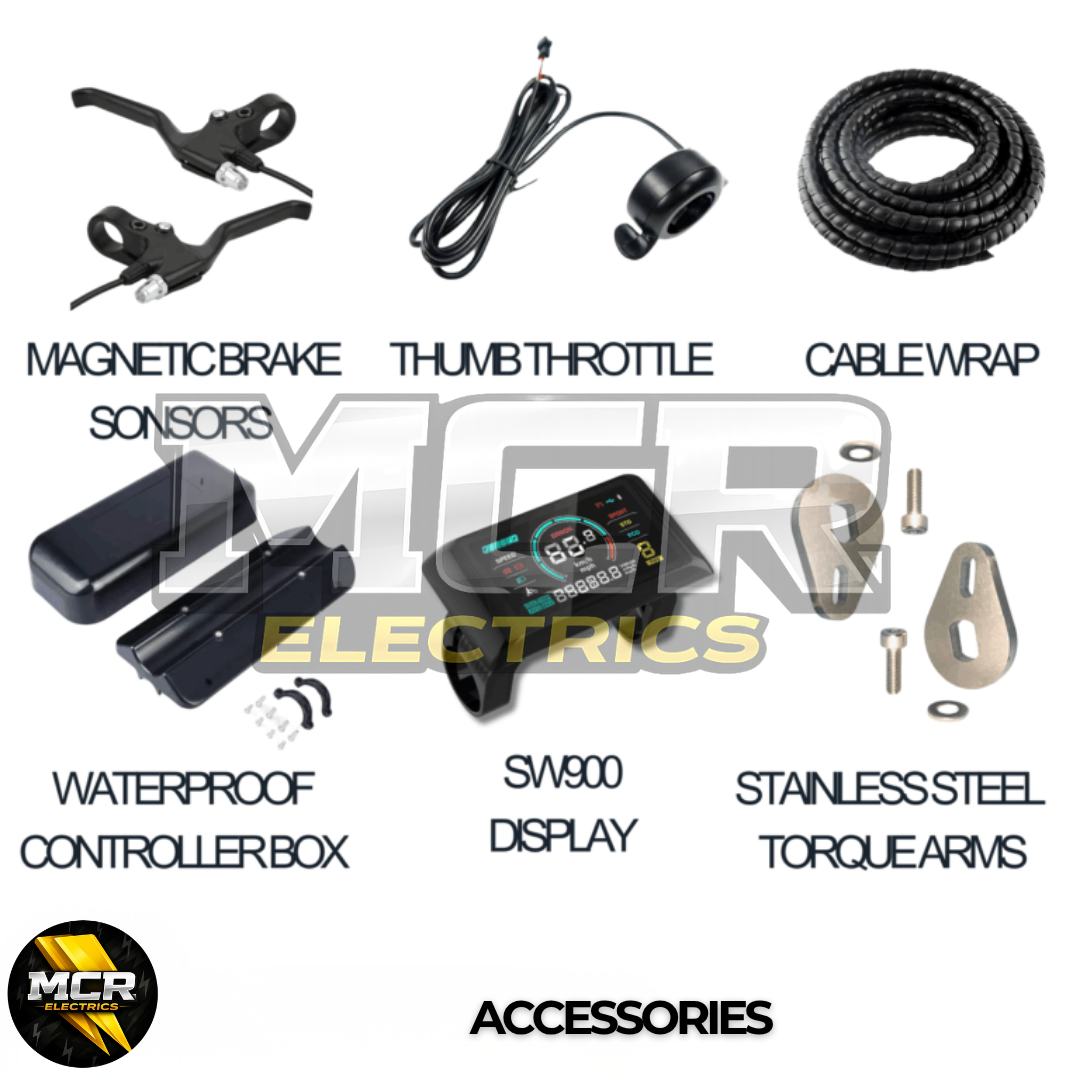

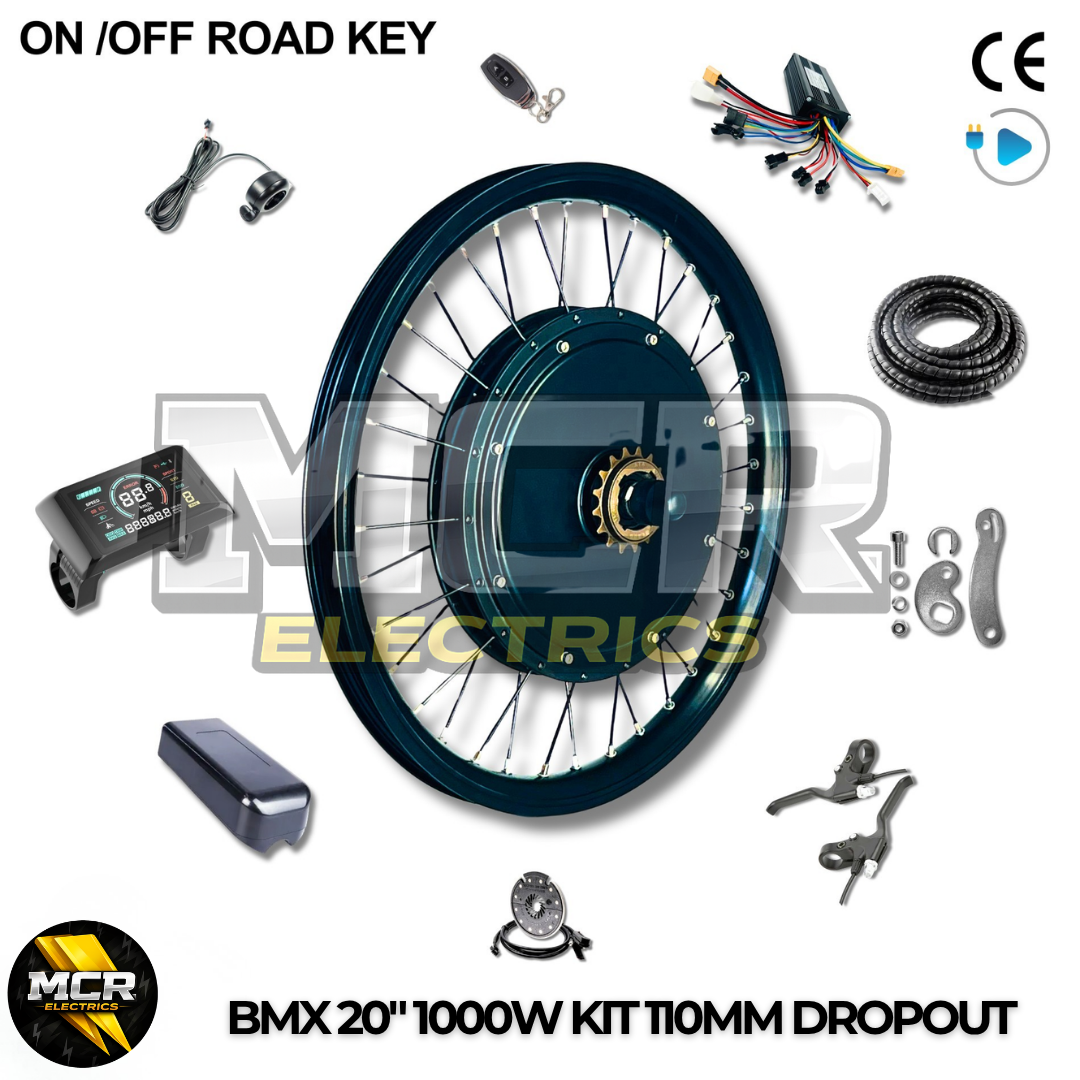

📦 Package Includes

• ✔️ 1000W Rear Hub Motor Wheel

• ✔️ 20" Double-Wall Black Rim

• ✔️ SW900 Colour Display

• ✔️ 30A Sine Wave Controller

• ✔️ Thumb Throttle

• ✔️ Brake Levers with Motor Cut-Off

• ✔️ DL12 Pedal Assist Sensor

• ✔️ Waterproof Controller Box

• ✔️ 2 × Stainless Steel Torque Arms

• ✔️ Waterproof Wiring Harness

Battery Bundle (if selected):

• ✔️ 48V 19.2Ah Battery

• ✔️ 54.6V 3A UK Charger

🛡️ Warranty

• ✔️ 3-Month Warranty on Conversion Kit Components

• ✔️ 12-Month Warranty on MCR Electric Batteries (when purchased)

Warranty excludes misuse, crash damage, water ingress and unauthorised modifications.

🚚 Shipping

• 🧪 Every kit is fully tested before dispatch

• 📦 Orders dispatched within 24 hours (Monday–Friday) when ordered before 1:00 PM

• 🚛 Fully tracked UK delivery

• ⏱️ Fast dispatch and delivery throughout the UK

↩️ Returns

• ✔️ 14-day returns policy

• ✔️ Item must be unused and returned complete

• ❗ Return postage costs are the responsibility of the buyer

⚠️ Important Notice

This kit is supplied in full-power mode.

The integrated Street Mode can be activated through the SW900 display and is intended to help riders comply with applicable e-bike regulations where required.

It is the rider's responsibility to ensure the bike is used in accordance with all applicable local laws and regulations.

🤝 Why Choose MCR Electric?

• 🇬🇧 UK-based expert support

• 🚚 Fast UK dispatch

• 🔧 Every kit tested before shipping

• ⚡ Premium waterproof plug-and-play wiring

• 🛠️ Designed specifically for BMX conversions

• 🚲 Trusted by custom e-bike builders across the UK

• 🛒 Wide range of batteries, motors, controllers and accessories available

Need advice before ordering? Contact MCR Electric and we'll help you choose the right setup for your BMX build.
