🖥️ UKC1 Plus Full Colour E-Bike Display – Latest Version

3.5" IPS Display • USB Charging • Multi-Voltage Compatible

Upgrade your ride with the latest MCR Electric UKC1 Plus 3.5-inch IPS Full Colour Display, offering crystal-clear visibility, modern styling and reliable performance. Designed for a wide range of e-bike conversion kits, this premium display provides all the essential ride information in a bright, easy-to-read full-colour screen.

Compatible with 24V, 36V, 48V, 52V, 60V and 72V systems, it's the perfect upgrade for riders looking to enhance both the appearance and functionality of their e-bike.

⚡ Features

• ✔️ 3.5-inch IPS full-colour display
• ✔️ Bright, high-definition screen with excellent visibility
• ✔️ Compatible with 24V, 36V, 48V, 52V, 60V & 72V systems

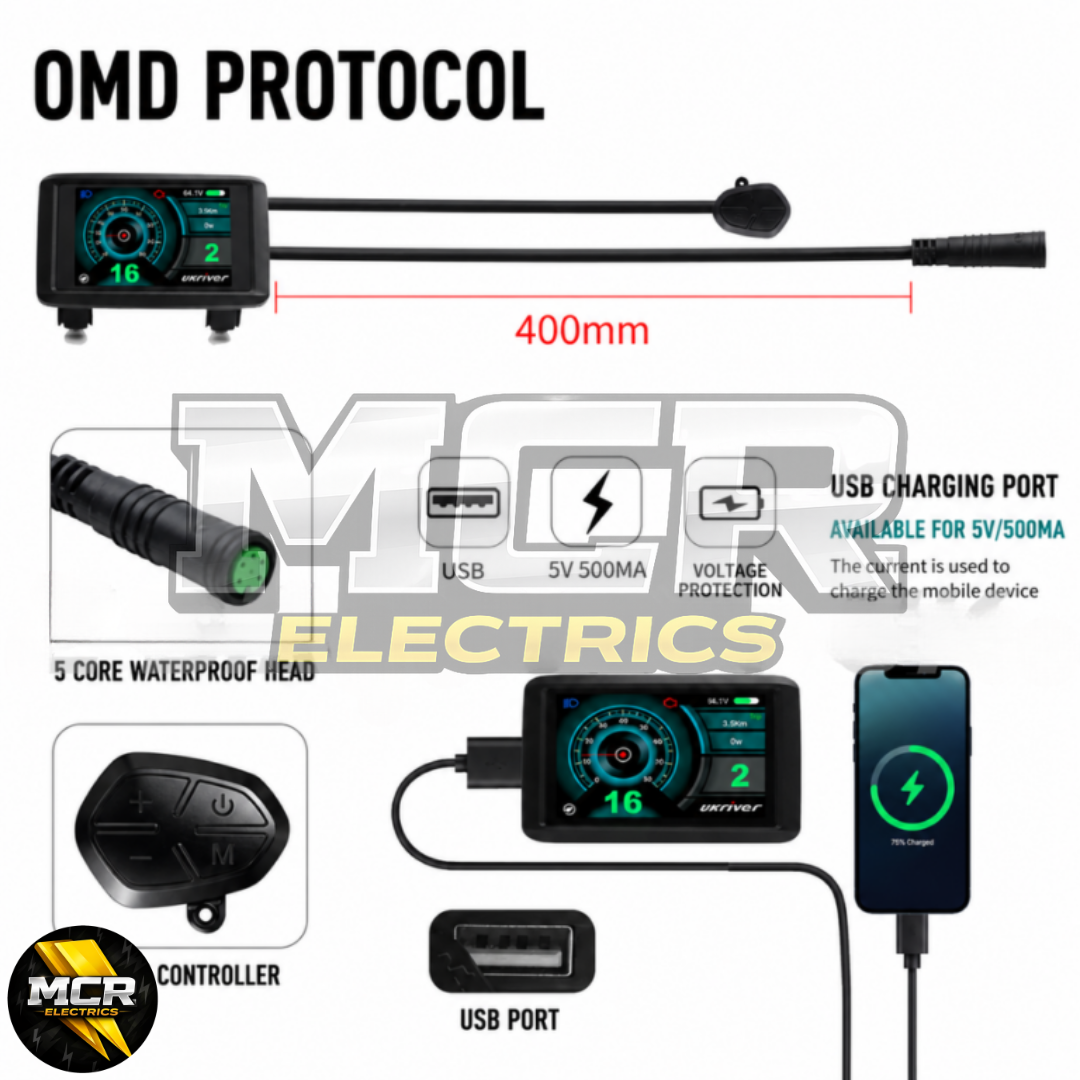

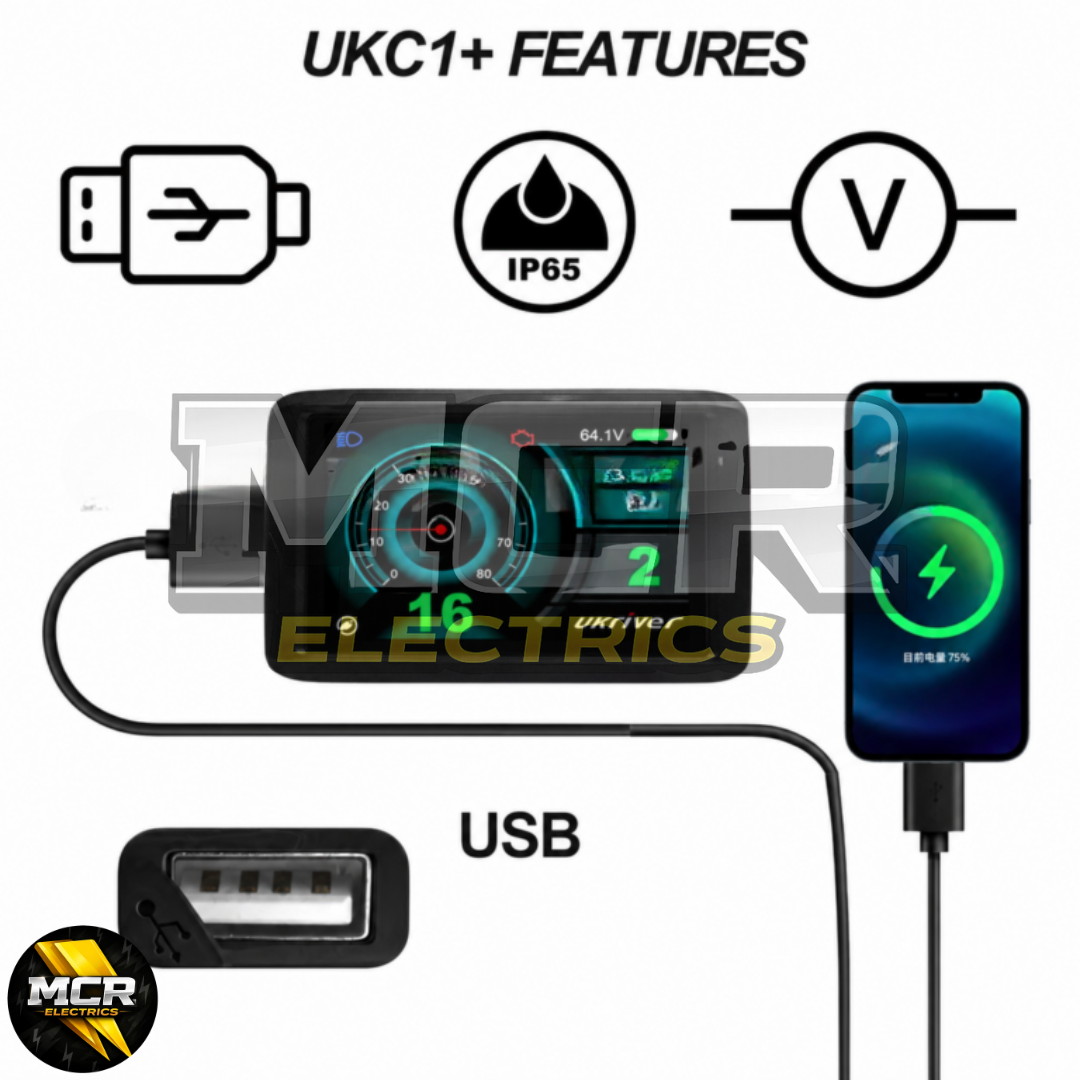

• ✔️ USB charging port (5V / 500mA)
• ✔️ Waterproof IP65 rated
• ✔️ Ultra-low standby power consumption
• ✔️ Rugged design for everyday riding
• ✔️ Modern interface with easy-to-read information
• ✔️ Compatible with sine wave controllers
• ✔️ Ideal upgrade for DIY e-bike conversions

📏 Specifications

• Display: 3.5-inch IPS Full Colour
• Operating Voltage: 24V / 36V / 48V / 52V / 60V / 72V
• Rated Power: 1W
• Maximum Operating Power: 5W
• USB Output: 5V / 500mA
• Controller Support Current: 100mA
• Waterproof Rating: IP65
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Dimensions: 111.1 × 66.8 × 82.8mm

✅ Available Options

🔹 For MCR Electric Conversion Kits

Choose this option if you've purchased one of our conversion kits and would like to upgrade to the latest UKC1 Plus full-colour display.

🔹 For Other Conversion Kits

Choose this option if you're using another compatible conversion kit and want to install the UKC1 Plus display on your existing setup.

⚠️ Compatibility Information

This display is available using different communication protocols, so selecting the correct version is essential.

• ✔️ Choose For MCR Electric Conversion Kits if you're using one of our conversion kits.
• ✔️ Compatible with many sine wave controller systems.
• ❌ Not compatible with Sabvoton Bluetooth controllers, which use the APT protocol.

If you're unsure whether this display is compatible with your controller, please contact MCR Electric before ordering.

To check compatibility, we'll need:

• 📸 A clear photo of your controller
• 📸 A photo of the controller label or serial number

We'll be happy to confirm the correct version before you purchase.

🔒 Reliable Performance

• ✔️ Ultra-low standby leakage current (<1µA) to help preserve battery life
• ✔️ IP65 waterproof rating for riding in wet conditions
• ✔️ Designed for reliable everyday use
• ✔️ Durable construction built to last

📦 Package Includes

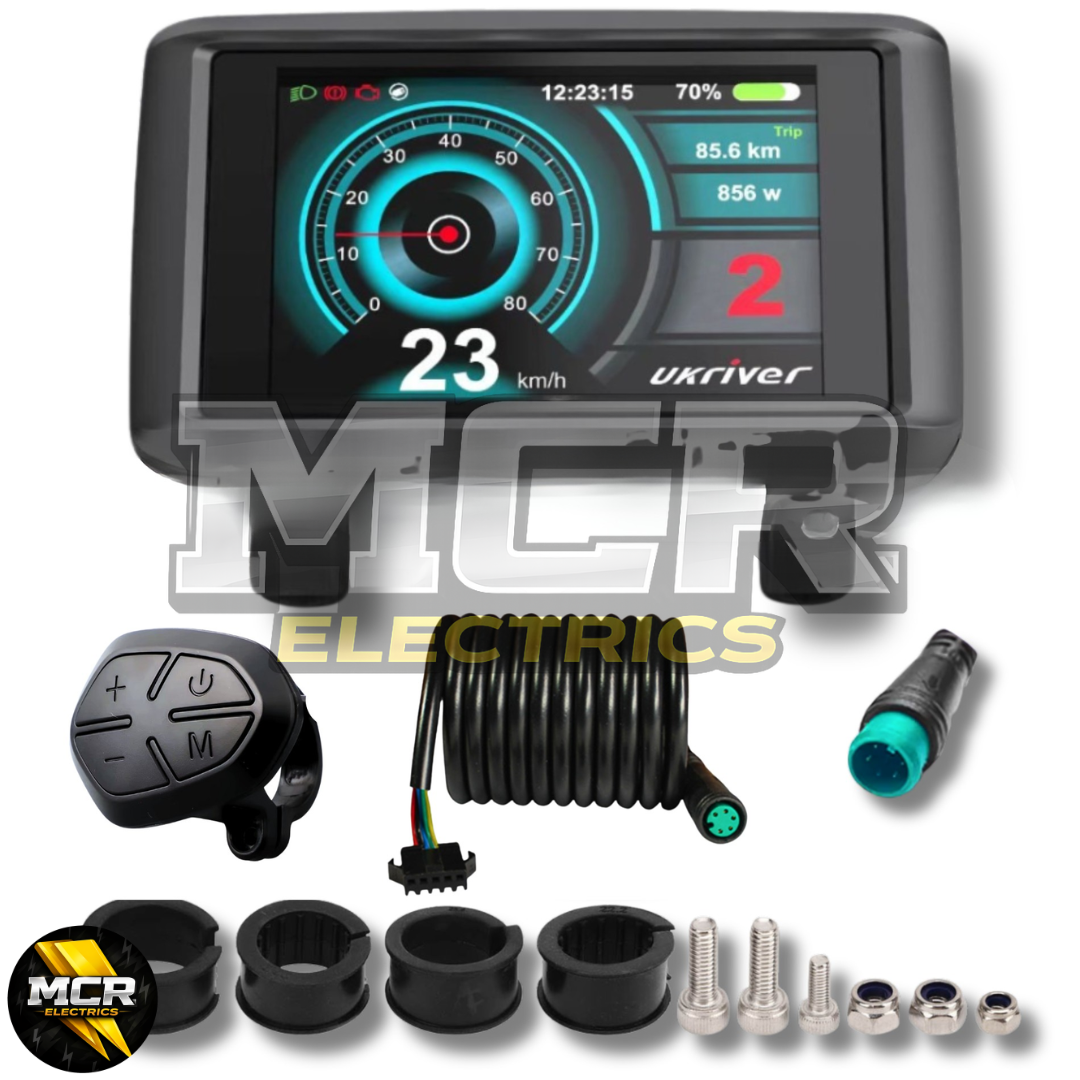

• ✔️ 1 × UKC1 Plus Full Colour Display
• ✔️ Handlebar mounting bracket
• ✔️ Waterproof display cable

🤝 Why Choose MCR Electric?

• 🇬🇧 UK-based expert support
• 🚚 Fast UK dispatch
• 🔧 Technical advice before and after purchase
• ⚡ Trusted by e-bike builders across the UK
• 🛒 Wide range of motors, controllers, batteries, displays and accessories available

Need help choosing the correct display? Get in touch with MCR Electric and we'll help you select the right version for your bike and controller.
